How to Choose the Right Types of Flowmeters: A Practical Guide for Industrial Applications

June 8, 2026

Choosing the right types of flowmeters affects your production efficiency, cost accounting and safety control directly. Flowmeters rank among the three process measurement instruments, with pressure and temperature sensors being the other two^[34]. Selecting the wrong technology can compromise accuracy, increase maintenance costs and create operational bottlenecks that hurt your bottom line.

Different types of flowmeters are available. Differential pressure systems account for 25-33% of the global installed base^[34]. Electromagnetic meters and precision Coriolis mass flow meters offer ±0.1% accuracy^[35]. Understanding which technology fits your specific application is critical.

We've created this piece to help you guide flowmeter selection with confidence. You'll learn how various types of flowmeters and their applications match your process requirements. This ensures optimal performance and reliability.

What You Need to Know About Flowmeters

How Flowmeters Work in Industrial Settings

Flowmeters measure the movement of liquids, gasses, or steam within process systems^[36]. These devices calculate either volumetric flow rate (how much space fluid occupies) or mass flow rate (the actual mass of material moving through)^[2].

Different types of flowmeters operate on distinct measurement principles. Differential pressure meters employ the Bernoulli Equation and measure pressure decreases as fluid speed increases^[2]. Electromagnetic flowmeters operate on Faraday's Law and detect voltage generated when conductive fluid flows through a magnetic field^[3]. Coriolis meters measure mass flow by detecting inertia forces within vibrating tubes^[3]. Positive displacement meters trap and count fixed volumes to determine flow rate^[2].

Flow data integrates into PLC, SCADA, and process control systems ^[36]. This up-to-the-minute information regulates chemical dosing and monitors resource consumption. It optimizes energy usage and detects abnormal operating conditions^[36]. Abnormal flow conditions often provide the earliest warning signs of developing equipment problems^[36].

Understanding Flow Measurement Units

Volumetric flow rate measures the volume passing through a cross-sectional area per unit time. You'll see it expressed as cubic meters per second (m³/s), liters per minute (L/min), or gallons per minute (GPM)^[37]. Mass flow rate measures the mass of fluid moving per unit time, in kilograms per second (kg/s) or pounds per hour (lb/hr)^[37].

Gas measurement presents unique challenges. Gasses compress and change volume under different pressure and temperature conditions^[38]. References distinguish between actual flow rate (acm/h) and standard flow rate (sm³/sec, SCFM) measured at specific reference conditions^[38]. Mass flow measurement remains constant whatever the pressure and temperature changes, eliminating correction factors^[39].

Why Choosing the Wrong Flowmeter Costs Money

Improper flowmeter selection can lead to up to 50% maintenance cost waste^[40]. Operating meters above or below their defined range reduces accuracy and damages equipment^[41]. Using incompatible technology with specific fluid properties causes premature wear or inaccurate measurements^[41].

Inaccurate flow measurement triggers excessive resource consumption and inconsistent product quality. Equipment damage and increased operating costs follow^[36]. Without routine calibration, precision meters drift over time due to wear, environmental conditions, or sensor degradation^[41]. Process inefficiencies and environmental risks follow measurement errors, along with regulatory non-compliance^[3].

Types of Flowmeters and Their Applications

Industrial applications rely on five main types of flowmeters. Each suits specific process conditions and measurement requirements.

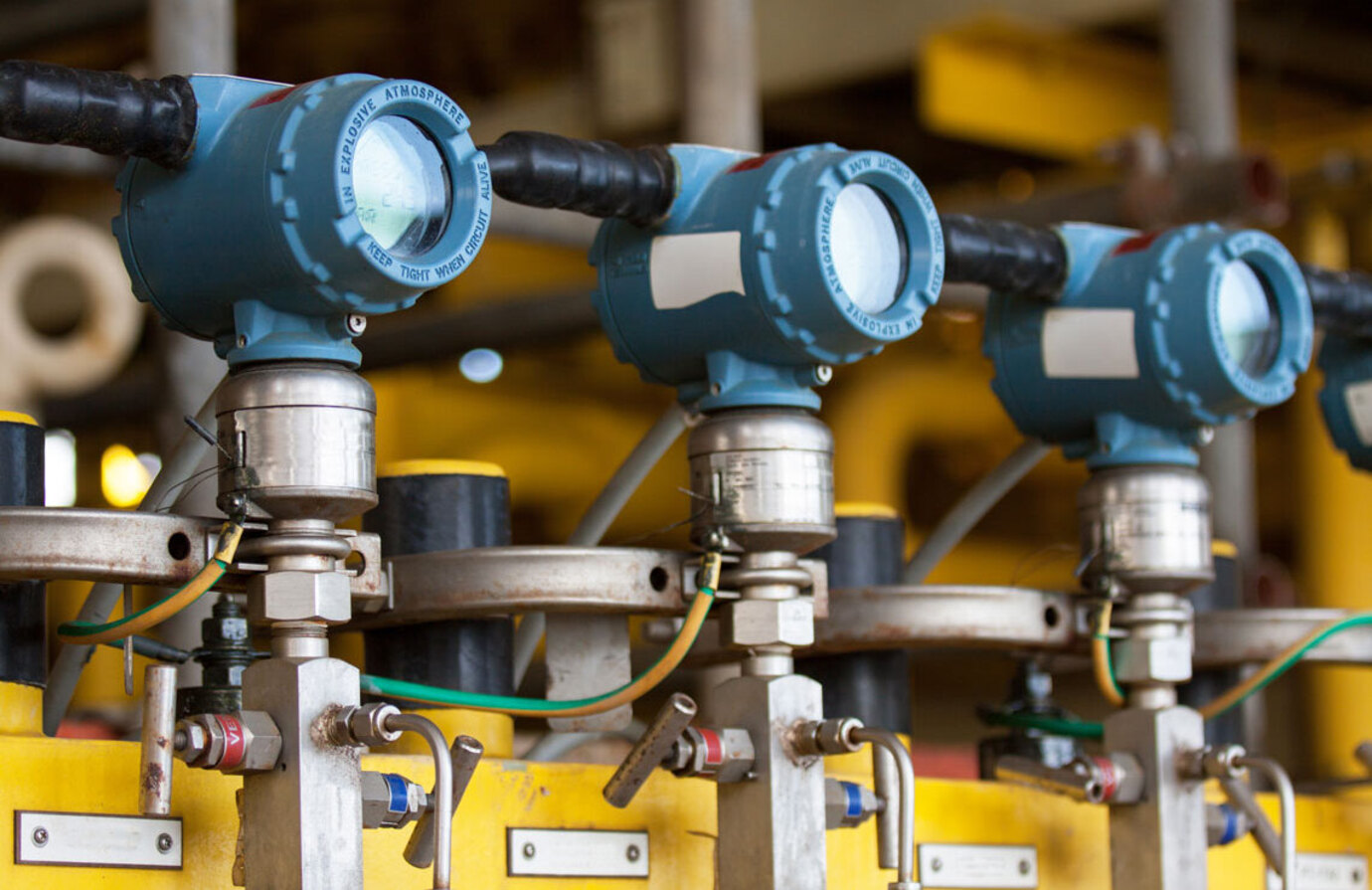

Differential Pressure Flow Meters for General Use

Differential pressure flow meters use Bernoulli's principle to calculate flow by measuring pressure drop in a restriction^[42]. Orifice plates, venturi tubes and flow nozzles create this restriction^[43]. These meters achieve ±2.0 to ±5.0% accuracy when installed correctly^[44]. They work in oil and gas, chemical processing, water treatment, HVAC and power generation applications^[42]. DP meters represent 25-33% of global installations. Their proven reliability and standardized design per ISO 5167 make them popular^[43].

Electromagnetic Flow Meters for Conductive Fluids

Electromagnetic flow meters measure conductive liquids using Faraday's Law of Electromagnetic Induction^[10]. Conductive fluid flows through a magnetic field and generates voltage proportional to flow velocity^[5]. These meters require minimum conductivity of 5 microsiemens per centimeter^[10]. They deliver ±0.5% accuracy with no moving parts and minimal pressure loss^[10]. Mag meters handle water, wastewater, slurries and caustics well^[5]. They represent 24% of all flow meters sold^[11].

Coriolis Mass Flow Meters for High Precision

Coriolis meters measure mass flow by detecting twisting forces in vibrating tubes^[12]. They measure mass flow, density, concentration and temperature at the same time^[12]. Accuracy ranges from ±0.1% to ±0.5%^[13]. These meters require no straight pipe runs. They compensate for density changes in gasses on their own^[12]. Applications span custody transfer, precision dosing and hydrogen measurement^[12].

Ultrasonic Flow Meters for Non-Invasive Measurement

Ultrasonic meters transmit sound waves and measure transit time differences that fluid flow causes^[14]. Clamp-on versions install externally without process interruption^[6]. Inline versions deliver higher accuracy through direct pipe integration^[15]. These meters measure liquids and gasses independent of conductivity, pressure, temperature or viscosity^[6]. They suit pipe diameters up to DN 4000^[6].

Turbine and Positive Displacement Flow Meters

Turbine meters use rotating rotors proportional to fluid velocity and achieve ±0.5% accuracy or better^[16]. They excel in clean, steady flow applications^[17]. Positive displacement meters trap fixed volumes and count them. They deliver 0.1% to 2.5% accuracy^[18]. Both technologies serve custody transfer. PD meters handle high-viscosity fluids well^[19].

Step-by-Step Selection Process for Industrial Flowmeters

A systematic approach prevents selection errors that get pricey and will give optimal flowmeter performance throughout its operational life.

Step 1: Define Your Measurement Requirements

Determine whether you need continuous flow rate data or totalized volume and if transmission to SCADA systems is required^[1]. Your flow envelope should cover shutdown state, startup progression, normal operating range and extreme conditions^[7]. Accuracy requirements need separate specifications at minimum, normal and maximum flow rates^[1]. You must distinguish between accuracy (closeness to true value) and repeatability (consistency over time), as good repeatability doesn't guarantee accuracy^[7].

Step 2: Analyze Fluid and Process Characteristics

Fluid properties you need to document include density, viscosity, conductivity, temperature range and pressure limits. Contaminants like bubbles or solids matter too^[1]. Note whether the fluid is Newtonian, its tendency to coat and light transmission qualities^[1]. Expected pressure and temperature variations beyond normal operating values should be recorded^[1].

Step 3: Compare Suitable Flowmeter Technologies

Your requirements should match against different flowmeter types. Electromagnetic meters suit conductive fluids with solids. Turbine meters require clean fluids^[20]. Select designs without moving parts to reduce maintenance when specifications and performance line up^[21].

Step 4: Assess Installation and Maintenance Factors

Accurate measurements require 10-20 pipe diameters upstream and 5-10 downstream for most flowmeters^[4]. Straight run availability, pipe direction (avoid downward liquid flow) and accessibility need verification for calibration^[20]. Meters with moving parts require periodic internal inspection and cleaning^[1].

Step 5: Perform Cost-Benefit Analysis

Purchase price represents only a fraction of total ownership cost^[8]. Installation complexity, calibration frequency, maintenance requirements and expected lifespan matter. Downtime implications should be factored in too^[22]. A turbine meter costing $4,000 that lasts 15 years costs about $267 per year. A $12,000 Coriolis meter lasting 12 years with higher calibration costs exceeds $1,000 annually^[23].

Step 6: Confirm Your Selection

Flowmeter manufacturers' representatives who understand application-specific requirements can help^[20]. We restore accuracy with complete Measurement Instrumentation solutions powered by Emerson technology and local application expertise. Call us at 610.495.1835 or fill out the form below. Technical partners help outline lifecycle costs and make sure you select the right meter upfront rather than forcing an incorrect choice after installation^[20].

Industry-Specific Flowmeter Selection Guidelines

Each industry presents unique measurement challenges that determine which types of flowmeters work best.

Chemical and Life Science Industries

Chemical processing needs meters that withstand corrosive substances and extreme conditions. Electromagnetic flow meters with acid/alkali-resistant linings handle strong acids, caustics and slurries well^[24]. Ultrasonic meters suit non-conductive media like purified water and deionized water^[24].

Pharmaceutical applications require ASME BPE-compliant designs with 316L stainless steel construction and Ra ≤ 0.8 μm surface finish^[25]. Electromagnetic meters with PTFE or PFA liners withstand CIP chemicals at 60-80°C. They also handle SIP sterilization at 121-135°C^[25]. Sanitary turbine meters deliver ±0.5% accuracy for WFI systems and precision filling operations^[26].

Water and Wastewater Treatment

Electromagnetic meters dominate raw water intake, sludge flow and effluent monitoring because they handle dirty fluids^[27]. Clamp-on ultrasonic meters enable temporary measurement without pipe cutting^[9]. Turbine meters measure filtered water with ±0.5% accuracy or better^[9]. Open channel flow measurement uses weirs and flumes to meet regulatory compliance^[28].

Oil and Gas Applications

Custody transfer requires exceptional accuracy. Coriolis meters measure liquid mass flow directly and remain unaffected by temperature or pressure changes^[29]. Multi-path ultrasonic meters handle large-diameter gas pipelines per AGA Report No. 9^[29]. Electromagnetic meters serve produced water and injection water applications with no moving parts^[30].

Food and Beverage Processing

Sanitary turbine meters meeting 3-A standards deliver ±0.5% accuracy for beer, wine and dairy processing^[31]. Electromagnetic meters measure conductive liquids like milk, juices and water^[32]. Both technologies must withstand CIP/SIP procedures and meet FDA compliance requirements^[33].

Conclusion

The right flowmeter selection affects your operational efficiency and bottom line. Many overlook this point: purchase price alone ignores lifecycle costs that determine true value. Match technologies to your specific fluid properties and confirm choices with experienced partners using the step-by-step process outlined here. We restore accuracy with complete Measurement Instrumentation solutions that combine Emerson technology and local application expertise.

Contact us at 610.495.1835 or through the form below. Your process deserves measurement technology that delivers reliable data for years to come.

FAQs

Industrial applications commonly use five primary flowmeter types: differential pressure meters (including orifice plates and venturi tubes), electromagnetic meters for conductive fluids, Coriolis mass flow meters for high-precision measurements, ultrasonic meters for non-invasive measurement, and turbine or positive displacement meters for clean fluid applications. Each technology serves specific process conditions and measurement requirements.

Start by defining your measurement requirements including accuracy needs, flow range, and data transmission requirements. Then analyze your fluid properties such as conductivity, viscosity, temperature, and pressure. Compare suitable flowmeter technologies against these criteria, evaluate installation constraints like straight pipe run requirements, and perform a cost-benefit analysis that includes lifecycle costs beyond just purchase price.

Electromagnetic flowmeters are ideal for measuring conductive liquids with minimum conductivity of 5 microsiemens per centimeter, including water, slurries, acids, and caustics. Ultrasonic flowmeters work independently of conductivity and can measure both liquids and gasses non-invasively, making them suitable for non-conductive media like purified water or applications where external clamp-on installation is preferred.

Accuracy varies by technology: Coriolis meters offer the highest precision at ±0.1% to ±0.5%, turbine meters achieve ±0.5% or better, electromagnetic meters deliver ±0.5% accuracy, positive displacement meters range from 0.1% to 2.5%, and differential pressure meters typically provide ±2.0% to ±5.0% accuracy when properly installed.

Selecting an inappropriate flowmeter can waste up to 50% of maintenance costs and lead to inaccurate measurements that cause excessive resource consumption, inconsistent product quality, equipment damage, and regulatory non-compliance. Operating meters outside their defined range reduces accuracy and damages equipment, while incompatible technology for specific fluid properties causes premature wear and measurement errors.
