BMS Data Center Integration: The Essential Checklist for Construction Success

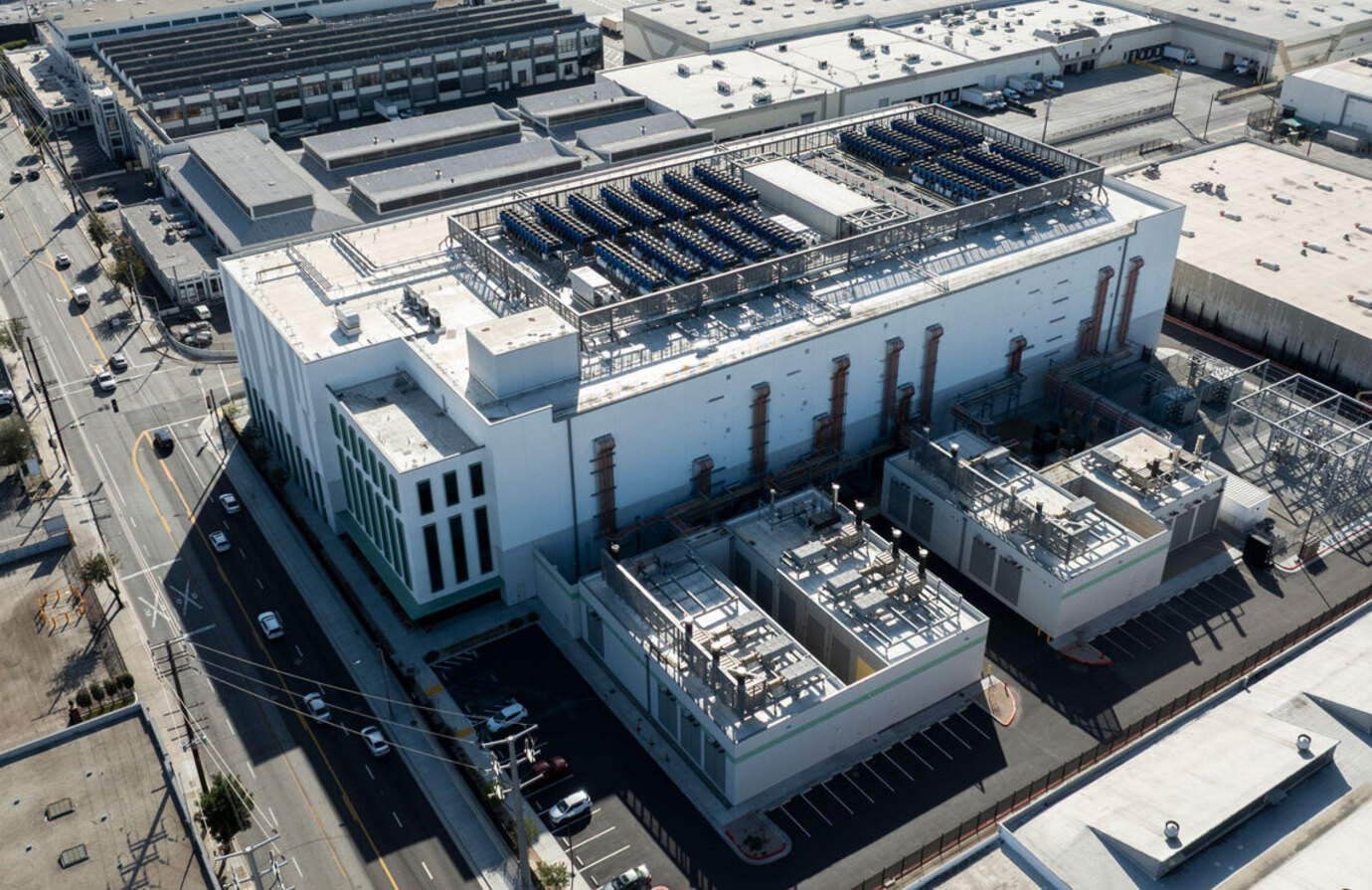

What is BMS in data center operations?

Building Management Systems (BMS) runs the cooling infrastructure. It controls chillers, CRAC and CRAH units, pumps, and air handlers, holding supply temperatures and pressures to setpoint. Most installations run on BACnet and DDC protocols, often with PLCs on larger plants[17]. The system controls mechanical equipment to maintain environmental conditions required for IT infrastructure.

BMS manages the entire mechanical backbone that keeps server environments stable. But simple alarm notifications from BMS platforms aren't enough to detect electrical system issues that threaten uptime[18].

The role of SCADA in building management systems

SCADA sits above the BMS as the layer operators work in daily. It pulls data from the BMS, power systems, and field PLCs into one live view with trends and alarms. SCADA provides the unified interface where mechanical and electrical data sit side by side for high-density loads[17].
This supervisory layer gives operators a single version of the truth instead of forcing them to jump between separate screens[17]. SCADA makes complete monitoring across HVAC, electrical, and industrial processes possible in one centralized platform[3].

EPMS and electrical power monitoring

EPMS watches the electrical backbone: utility feeds, switchgear, UPS, generators, and PDUs. It tracks load, power quality, and capacity while flagging trouble before it reaches IT equipment[17]. The system monitors voltage, current, power factor, and energy consumption at every level of the power chain.

EPMS detects millisecond-level electrical events far faster than BMS alone [19]. This speed gap matters when power disturbances threaten server stability. Operators face capacity blind spots and cannot detect overloaded circuits before they trip without granular electrical monitoring.


Why these three systems must work together

Power and cooling are linked. A power event becomes a thermal event in minutes. When the three layers share data over open protocols, an alarm in one carries context from the others[17].
Integrating BMS and EPMS into a single platform creates unified visibility across infrastructure domains. Operators can monitor mechanical and electrical systems in one interface, removing silos in maintenance teams and eliminating blind spots. Faster fault response follows when teams manage infrastructure as a unified whole, rather than through fragmented platforms. Correlating data across systems reveals patterns and dependencies that isolated platforms miss, such as how power consumption affects cooling demand[19].

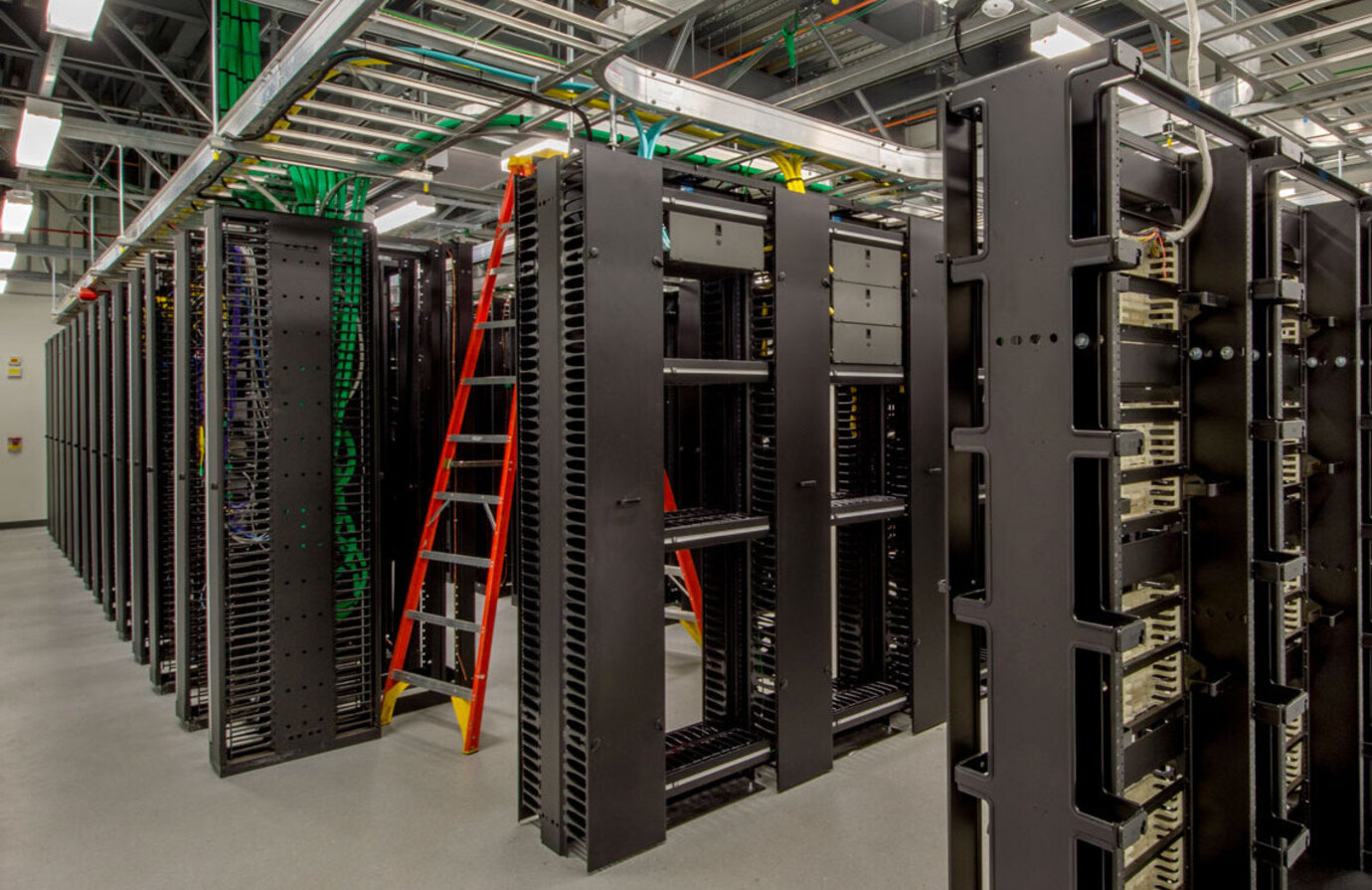

Successful data center bms system integration requires verification at every stage. This checklist structures the validation process from design through operational handover.

Pre-construction and design validation

• Review control strategies, design documents, and sequences of operation before installation begins[1].

• Submit and get approval for shop drawings, I/O schedules, network diagrams, and BMS logic documentation[7].

• Verify approved specifications detail network architecture, integration protocols, and control point requirements.

• Confirm electrical test results are available, including insulation resistance, continuity, and functional polarity[7].

Equipment commissioning requirements

• Complete installation inspection of all devices against manufacturer's instructions [8].

• Verify electrical voltages and amperages are correct, and circuit integrity is intact[8].

• Test sequences using approved checklists and confirm all safety devices trip at appropriate conditions[8].

• The operational test requires the system to operate for two weeks without malfunction, alarm caused by control action or device failure, and with stable control[8].

Point-to-point testing and alarm validation

• Verify every input and output on the points list physically from field device to controller termination[9].

  • For inputs, confirm wire continuity and verify sensor field readings correspond to the correct controller point[9].

  • For outputs, command actuators, valves, and dampers through their full range and confirm correct device response physically[9].

• Document wiring faults and corrections point by point[9].

Fire and life safety system integration

• Test fire alarm interfaces with joint method statements and consultant witness[7].

• Verify smoke control system sequences, including damper positioning before fan operation[10].

• Confirm interlocks function correctly under automatic and manual modes[10].

Network and security system readiness

• Change default credentials at commissioning[5].

• Keep firmware current with manufacturer's security patches[5].

• Review BACnet configuration to limit unnecessary network exposure[5].

• Lock panel doors and position controllers so commissioning ports aren't available[5].

Operations training and handover evidence

• Deliver operator training with up to four complete O&M manual sets[8].

• Submit training plans detailing scope and competencies[8].

• Provide as-built controls drawings, point lists, database graphics source, and commissioning records[7].
