Pilot Operated Relief Valves Pilot Operated Relief Valves

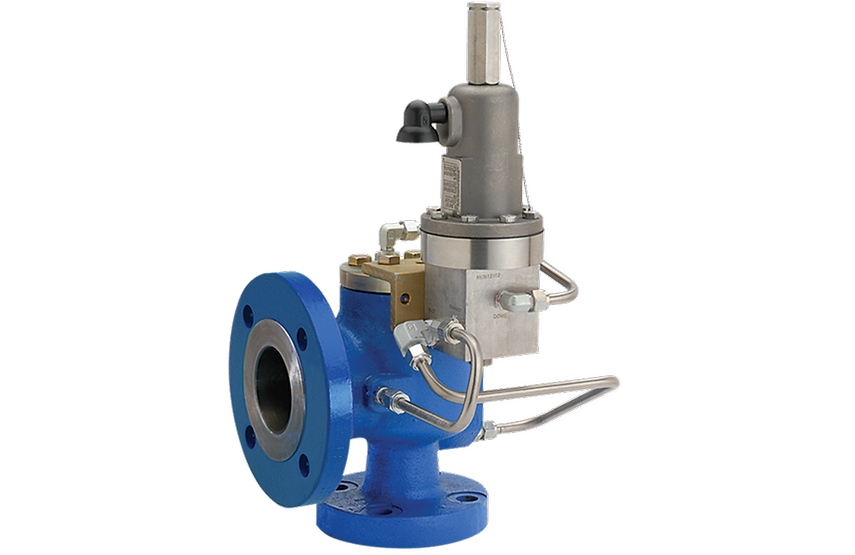

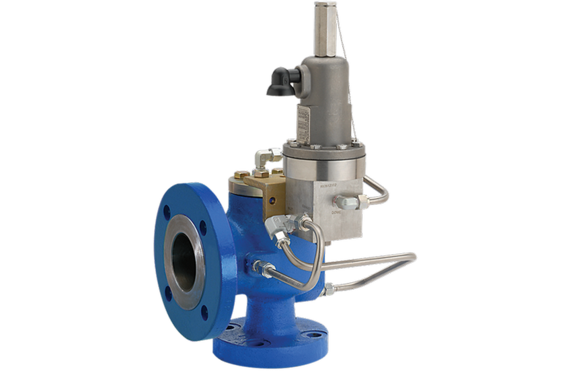

Anderson Greenwood Series 200, 400

Pilot operated pressure relief valves provide advanced, reliable, and efficient overpressure protection. With a track record of more than 50 years, these valves are designed for a wide range of applications, from basic to the most severe service conditions.

Series 200 Snap Acting Pilot Operated Relief Valve

The Series 200 is well suited for gas, vapor, and mixed phase services, including dirty and/or wet applications. It features a non-flowing pilot that provides system overpressure protection from 25 to over 6170 psig. The Series 200 remains the standard against which all other pilot operated relief valves are compared.

Series 400 Modulating Pilot Operated Relief Valve

The Series 400 is well suited for gas and/or liquid services, including dirty and/or wet services. The modulating action is strongly preferred for liquid relief because it minimizes the destructive effects of ‘liquid hammer’. It features a modulating non-flowing pilot. Under process conditions, both pilot and main valve can be tightened to as high as 98 percent of set pressure. The main valve lifts proportionally according to the required flow (relief demand), to prevent process pressure from exceeding the code allowance.
Interested in learning more about our products? Request a quote by clicking on the plus sign below.
Request a Quote
We Have the Valves You Need, When You Need Them
Proconex has an extensive inventory of control, isolation, and pressure relief/safety valves—all the brands you need. We stock most valves and related devices at one of our three regional warehouses and have access to many more through our Emerson partnership. When it comes to valve automation, we offer the largest portfolio of actuators and controls available in the market today. We have the applications experience and customization capabilities to find the optimum solution for your valve automation needs. In addition, we offer quick delivery and a range of services to keep your plant operating safely and efficiently.
