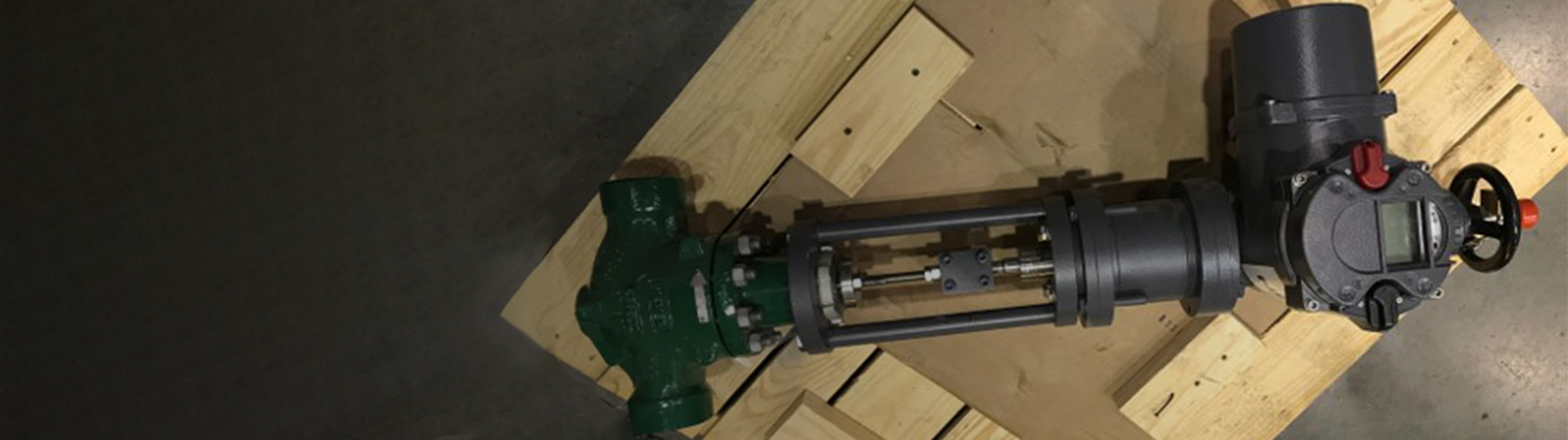

Bettis™ RTS Compact & Fail-Safe Electric Actuators

Increase Operational Safety, Improve Productivity, Minimize Downtime, and Reduce Costs

Key Features:

Key Features:

  • Mechanical fail-safe: True Spring Return Fail-Safe Operations provides reliable failure without backup power supply for high torque and thrust applications
  • Speed frequency adjustability: Adjustable speeds in both open and close directions and accuracy within 0.1% of setpoint
  • Smart/logic capabilities: Optional PID that can be configured and controlled either using local control or wireless using Bluetooth; the display can be conveniently rotated in 90-degree increments
  • Power supply range: 24-230 VDC; 115-230 VAC 50/60 Hz 1ph to 380-480 VAC 3 pH
  • Motor capability: On/off and continuous modulating duty-S9 (100% duty cycle)

Minimize Downtime and Reduce Costs

Replacing pneumatic actuators with mechanical fail-safe electric actuators can yield significant energy savings. This simplified process can reduce or cancel air compressor maintenance contracts and minimize system failures. RTS actuators include an integrated operational data logging capability that records data in real time, provides meter readings, and displays operating status, history, and warning alerts.

Download Brochure
Interested in learning more about our products? Request a quote by clicking on the plus sign below.
+
