How to Master Pressure Safety Valve Sizing for Steam Systems: A Step-by-Step Guide

July 20, 2026

Key Takeaways

Proper pressure safety valve sizing is critical for preventing catastrophic equipment failure and protecting personnel in steam systems. Here's what you need to know:

Undersized valves fail to protect, oversized valves cause operational problems. Precise sizing prevents both catastrophic overpressure events and issues like valve chatter, leakage, and premature failure.
Set pressure must never exceed MAWP, with single valves allowing 10% accumulation. For multiple valve systems, one valve sets at or below MAWP while others can reach 105% MAWP with 16% total accumulation.
Apply superheat correction factors for steam above 450°F to avoid undersizing. Ignoring temperature corrections (Ksh factor ranging 0.696-0.998) results in valves that cannot handle actual operating conditions.
Use manufacturer-certified discharge coefficients, not API 520 preliminary values. Certified coefficients average 0.833 for vapor versus the 0.975 preliminary estimate—a critical difference affecting safety margins.
Back pressure for conventional valves cannot exceed 10% of set pressure. Higher back pressure requires balanced bellows or pilot-operated designs to maintain proper valve operation and prevent instability.

Following this step-by-step methodology—from determining relieving capacity through verifying final selection—ensures your steam safety valves meet both regulatory standards and real-world operational demands.

Introduction

Pressure safety valve sizing protects your steam system from catastrophic overpressure events that can damage equipment and endanger personnel. Many facilities struggle with this critical calculation. This leads to undersized valves that fail to protect or oversized valves that waste energy and cycle too soon.

That's why we've created this detailed guide to walk you through the complete process. We'll cover everything you need, from understanding how to size pressure relief valve requirements and calculating relief valve sizing parameters to selecting the right safety valve steam boiler configuration. This piece will show you the step-by-step methodology for safety and help you avoid common mistakes. You'll ensure your steam safety valve selections meet both safety standards and operational requirements.

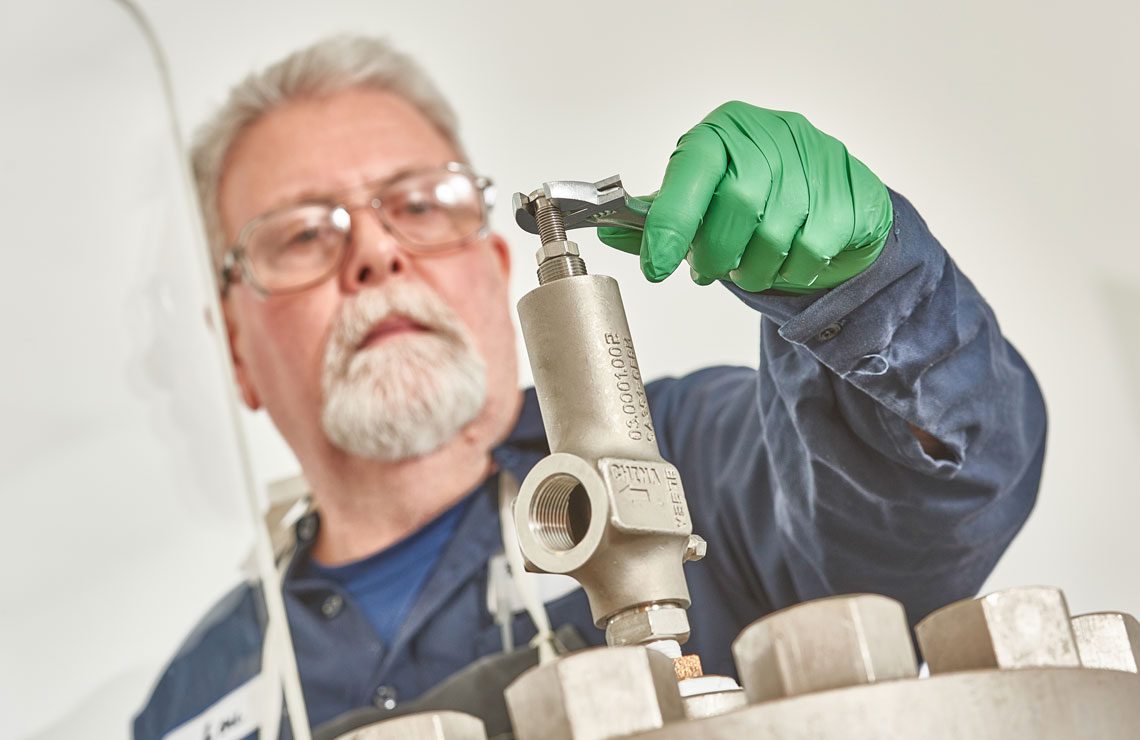

Understanding Pressure Safety Valve Basics for Steam Systems

A safety relief valve serves as an automatic protective device that releases excess pressure from your steam system at the time pressure exceeds a predetermined threshold. This valve prevents boiler explosions and equipment damage by venting steam before catastrophic failure occurs[2]. The device operates through a spring-loaded mechanism where the disk lifts off its seat once inlet static pressure rises above the set pressure and allows steam to discharge through the outlet connection[1].

Three main types exist for steam applications. Spring-loaded safety valves represent the most common design with a simple right-angle pattern valve body and adjustable spring compression[1][2]. Pilot-operated relief valves use a small pilot valve to control a larger balanced main stage[3]. Balanced bellows relief valves compensate for backpressure effects in systems with discharge piping[1].

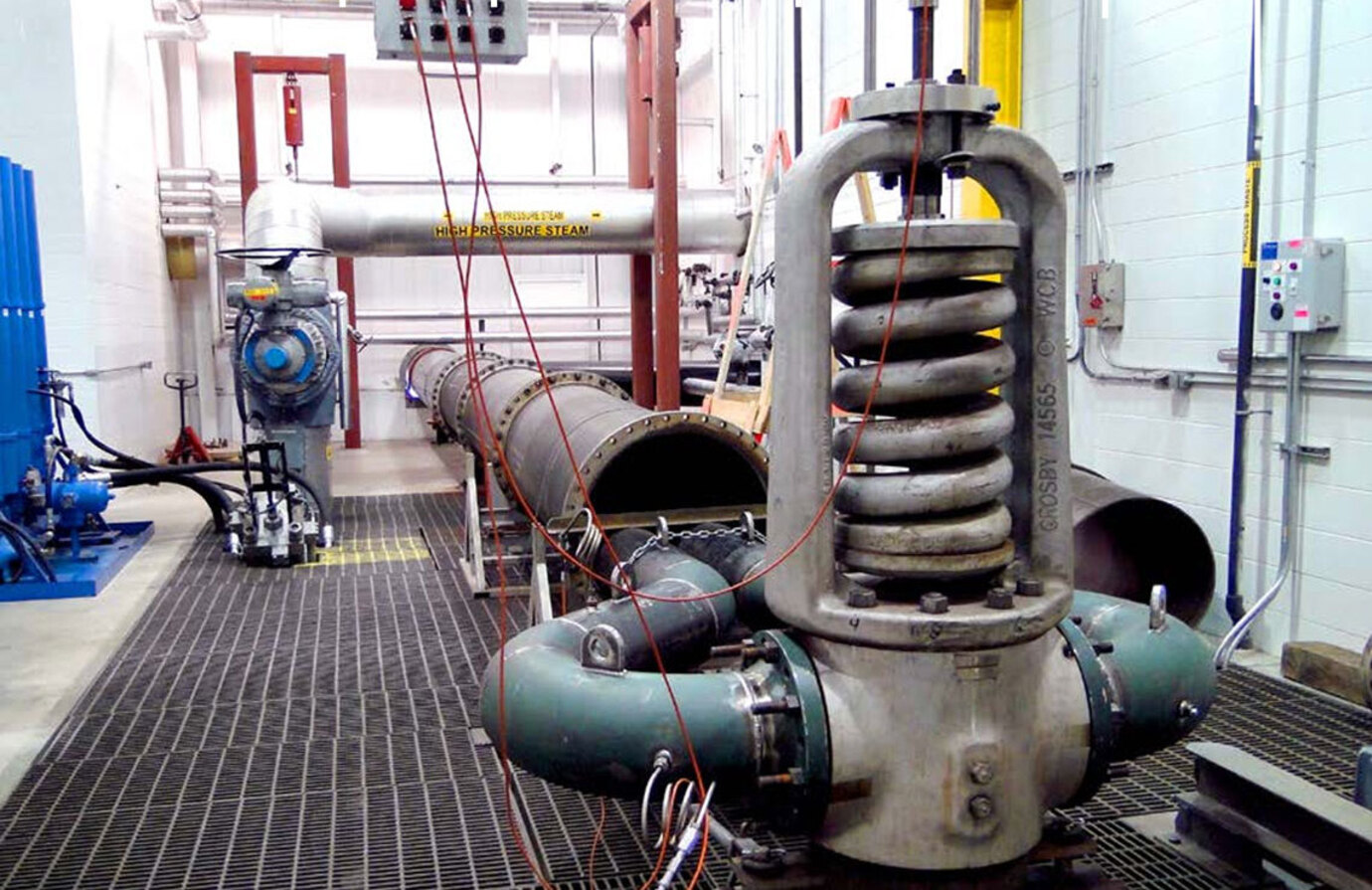

Why Proper Sizing Matters for Steam Boilers

Incorrect safety valve steam boiler sizing creates serious operational risks. Undersized valves cannot discharge sufficient steam volume at the required pressure and allow system pressure to exceed the maximum allowable working pressure[21]. This failure to protect can result in vessel rupture or explosion.

Oversizing creates different problems. Larger than required valves cause chatter and leakage that lead to premature device failure[7]. The valve may cycle improperly and create system instability that damages downstream components[22]. So relief valve sizing must match your system's actual discharge requirements with precision.

ASME Boiler and Pressure Vessel Code mandates specific sizing guidelines based on maximum flow rate, set pressure and fluid properties[2]. Safety valves must be installed wherever the maximum allowable working pressure of a system is likely to be exceeded[1].

Key Terminology to Know

Understanding pressure safety valve sizing requires familiarity with the following terms:

Set Pressure: The inlet pressure at which your valve begins to open as required by code[23]. This must never exceed the system's maximum allowable working pressure[5].
Maximum Allowable Working Pressure (MAWP): The maximum pressure your vessel can safely handle at a specific temperature[23]. This establishes the basis for relief device set pressures[24].
Overpressure: The additional pressure rise above set pressure required for the valve to discharge at rated capacity. For compressible fluids like steam, overpressure ranges between 3% and 10%[1].
Blowdown: The difference between set pressure and reseating pressure, expressed as a percentage of set pressure. For steam applications, blowdown is less than 10%[1].

Step-by-Step Process to Size a Relief Valve

Relief valve sizing involves multiple interdependent calculations spanning required flow, set pressure, orifice area, inlet effects and backpressure from discharge systems[10].

Step	What to Do	Why It Matters
1. Determine Required Relieving Capacity	Calculate the mass flow rate for each credible overpressure scenario and express capacity in the proper units for steam, gas, or liquid service.	Identifies the governing case and ensures the valve can discharge enough flow during an overpressure event.
2. Calculate Set Pressure	Set the valve at or below MAWP for single-valve installations; for multiple valves, set one at or below MAWP and others up to 105% of MAWP.	Keeps system pressure within code limits and prevents unsafe accumulation above MAWP.
3. Select the Sizing Equation	Use the steam sizing equation: A = W / (51.5 × Kd × P1 × Kb × Ksh × Kn).	Applies the correct calculation method for steam service rather than gas, vapor, or liquid formulas.
4. Calculate Minimum Orifice Area	Apply correction factors for backpressure, superheat, steam pressure, and discharge coefficient.	Accounts for real-world operating conditions that affect valve capacity and performance.
5. Choose Standard Orifice Size	Match the calculated area to the next larger API 526 standard orifice size.	Ensures the selected valve provides enough certified flow capacity without being undersized.
6. Verify the Selection	Compare required relief capacity with the certified capacity for the exact model, orifice, set pressure, and medium.	Confirms the final valve selection meets the system’s safety and performance requirements.

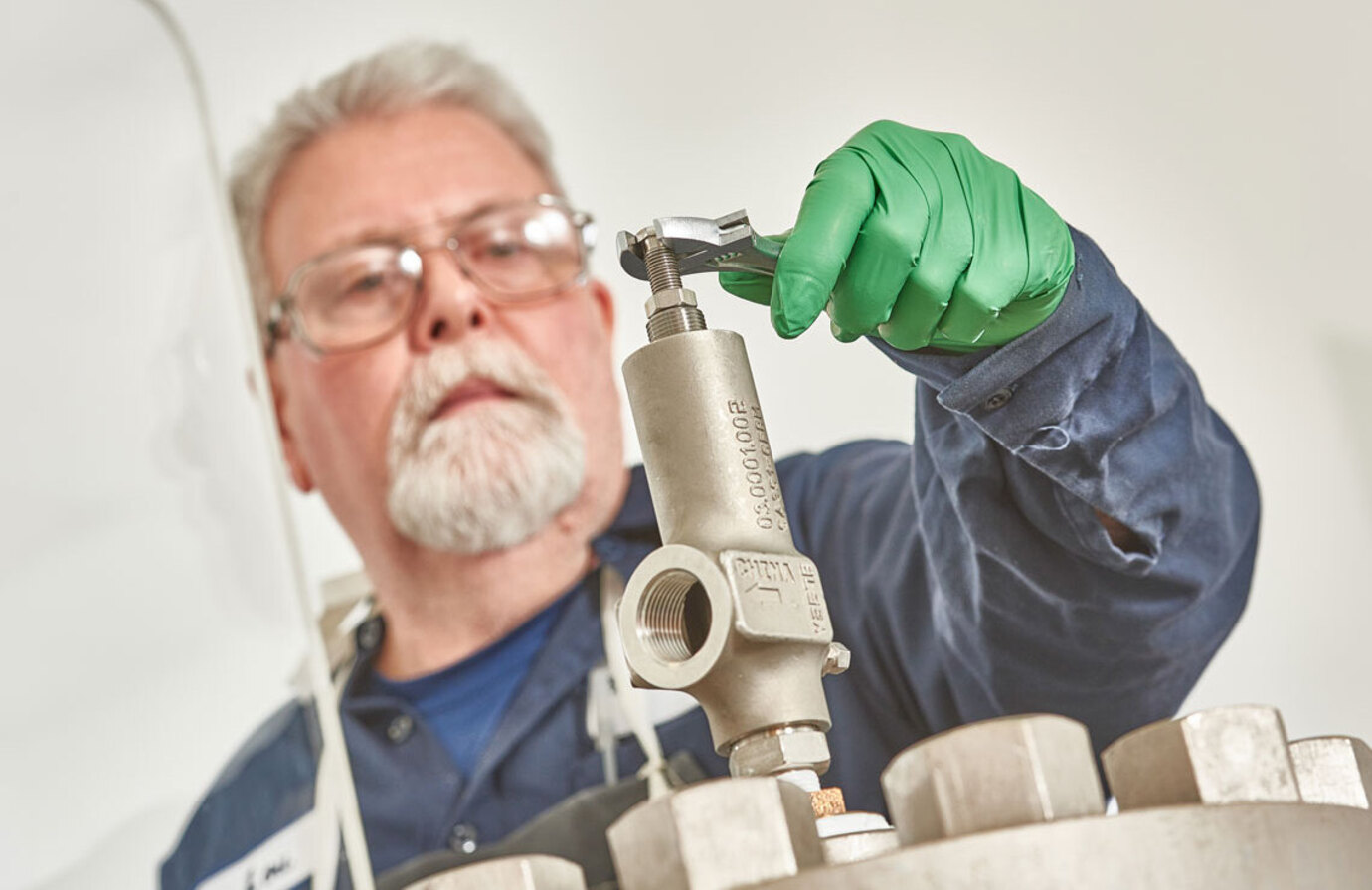

Common Sizing Mistakes and How to Avoid Them

Even with careful calculations, several errors can compromise accuracy when it comes to pressure safety valve sizing.

Superheat Correction Factors Get Ignored

Superheated steam needs temperature corrections even at the time tested with saturated steam[17]. Valves in service above 450°F demand correction factors applied to capacity calculations[18]. The superheat correction factor Ksh must multiply the capacity determined for saturated conditions, with values that range from 0.696 to 0.998 depending on flowing pressure and total temperature[13]. These corrections matter because valves become undersized without them and cannot handle actual steam conditions.

Back Pressure Calculations Go Wrong

Back pressure errors create dangerous under-sizing scenarios. Built-up back pressure for conventional valves must not exceed 10% of set pressure[6][19]. Variable superimposed back pressure requires balanced bellows or pilot-operated designs since conventional valves cannot compensate[6]. Conventional valves used beyond these limits cause instability, chatter and reduced flow capacity then[6].

Wrong Discharge Coefficients Get Used

The most common mistake involves using API 520 preliminary values (0.975 for vapor, 0.65 for liquid) for final sizing instead of manufacturer-certified coefficients. API states these values serve preliminary estimates only[20]. Certified coefficients average 0.833 for vapor and 0.671 for liquid, with required 0.9 derating factor application[19][4]. This verification step compromises safety margins when skipped[19].

Conclusion

You now have everything you need to size accurately for your steam systems. We've covered the calculations, from determining relieving capacity to selecting standard orifice sizes and critical correction factors that ensure proper protection.

Avoid the common mistakes we outlined. Don't ignore superheat corrections and back pressure limits. Your steam systems will operate safely within their design parameters for years if you apply this methodology consistently.

FAQs

A safety valve is designed to activate quickly, opening fully once a predetermined pressure threshold is reached to protect equipment from dangerous overpressure conditions. In contrast, a relief valve responds progressively, opening incrementally as pressure increases to regulate and maintain stable operating conditions within the system.

Undersized valves cannot discharge sufficient steam volume at the required pressure, potentially allowing system pressure to exceed safe limits and risk vessel rupture. Oversized valves cause chatter, leakage, premature failure, and improper cycling that creates system instability and damages downstream components.

MAWP is the maximum pressure a vessel can safely handle at a specific temperature. It establishes the basis for relief device set pressures and decreases as temperature increases due to reduced metal strength. For single-valve protection, the relief device's maximum set pressure must equal the vessel's MAWP.

Superheated steam requires temperature corrections through the superheat correction factor (Ksh), which must be applied to capacity calculations for valves in service above 450°F. Values range from 0.696 to 0.998 depending on flowing pressure and total temperature. Failing to apply these corrections results in undersized valves.

Valves must be installed vertically upright, positioned above the steam pipe or equipment they protect. They should be located at least 8-10 pipe diameters away from fittings to minimize inlet pressure drop, and adequate structural support must be provided for reaction forces during discharge to prevent system failure.
