Gate Valves vs Butterfly Valves: What Are the Differences?

May 11, 2026
When it comes to industrial flow control, choosing the right valve can significantly impact system efficiency, performance, and cost. You might be thinking, how different can one type of valve be from another? Quite a lot! Industrial valves serve a variety of critical functions, but not all valve types are used in every scenario. Two of the most commonly used options are gate valves and butterfly valves. The differences between butterfly and gate valve designs, operation, and applications are substantial.

In this guide, we’ll break down the key differences in the gate valve vs butterfly valve debate, helping you determine which option best suits your application.

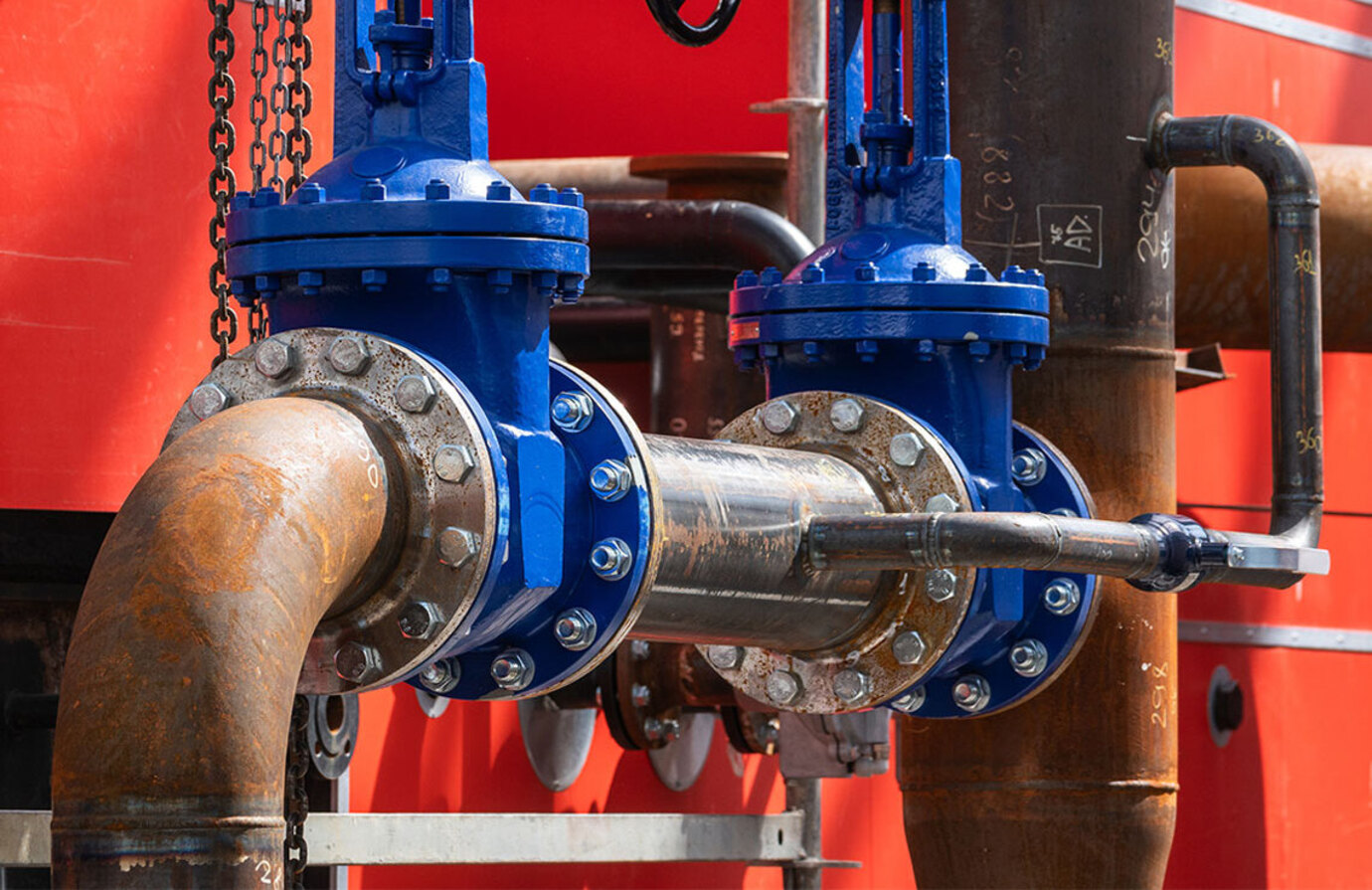

What Is a Gate Valve?

A gate valve is a linear (up and down or side-to-side) motion valve designed primarily for isolation of a flow. It uses a flat or wedge-shaped gate that moves vertically to start or stop fluid flow. When fully open, the gate retracts completely out of the flow path, allowing fluid to pass through with minimal resistance. This design reduces turbulence and pressure loss, making gate valves ideal for high-pressure applications.



What Is a Butterfly Valve?

A butterfly valve is a quarter-turn rotary valve that regulates flow using a circular disc mounted on a shaft. Opening the valve 90 degrees opens or closes the flow quickly. Unlike gate valves, the disc remains in the flow path even when fully open, which can introduce slight resistance but allows for faster actuation and compact design.



Gate Valve vs Butterfly Valve Comparison Table


Feature Gate Valve Butterfly Valve
Operation Type Multi-turn (linear motion) Quarter-turn (rotary motion)
Speed Slower to open and close Fast, 90-degree turn operation
Flow Control Best for on/off isolation only Suitable for throttling and flow regulation
Flow Path Fully unobstructed when open Disc remains in flow path
Pressure Drop
Minimal to none
Slight pressure loss due to disc
Sealing Performance
Excellent for tight shut-off Good, but less effective in high-pressure sealing
Size & Weight Larger and heavier Compact and lightweight
Installation Space Requires more space Ideal for tight or confined spaces




Explore Valve Solutions for Your Application

Understanding the difference between butterfly vs gate valve designs is key to building efficient, reliable systems. Whether you need precise isolation or flexible flow control, selecting the right valve ensures long-term performance and cost savings.

👉 https://www.proconexdirect.com/products/valves-actuators-regulators/

Explore a full range of valves, actuators, and regulators designed to meet the demands of modern industrial applications.
