How Triple Offset Valves Achieve Zero Leakage

The zero-leakage performance of a triple offset butterfly valve comes directly from its geometry. To understand why triple offset designs outperform conventional butterfly valves, you need to understand what those three offsets are and what each one contributes.

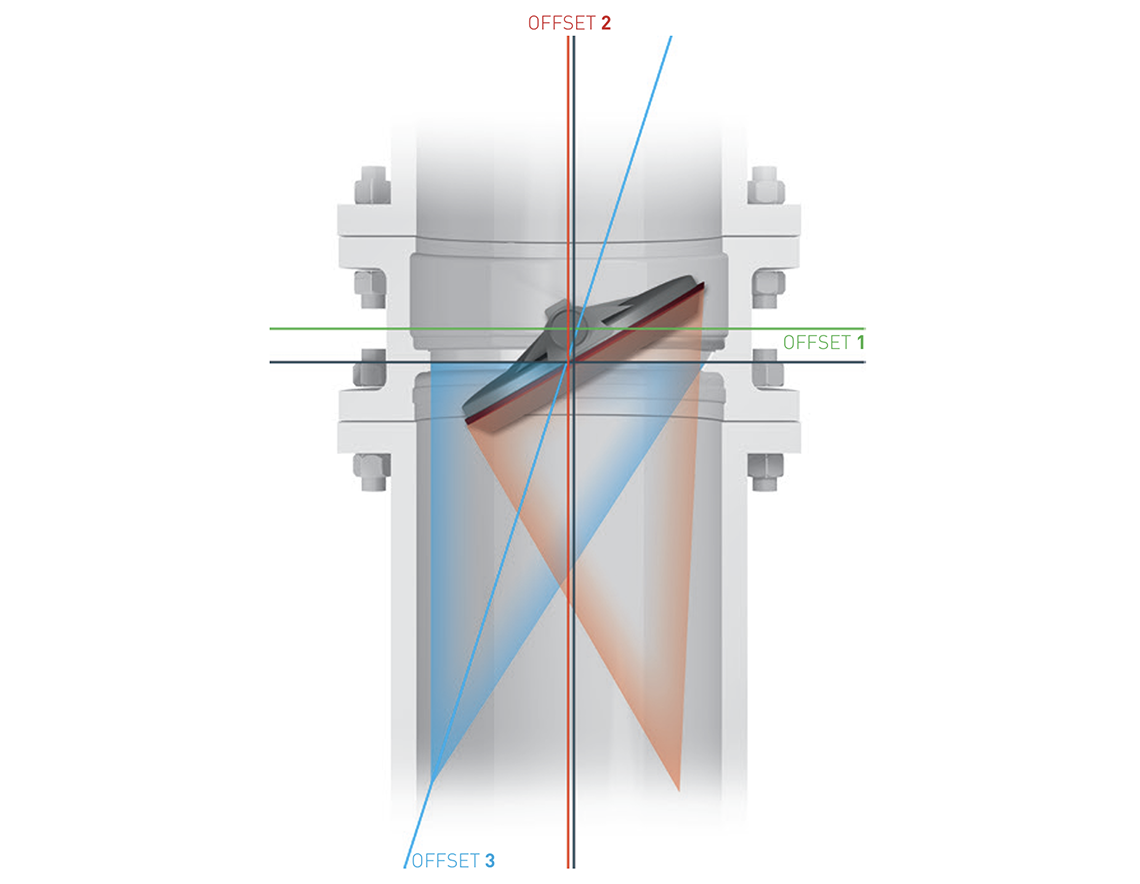

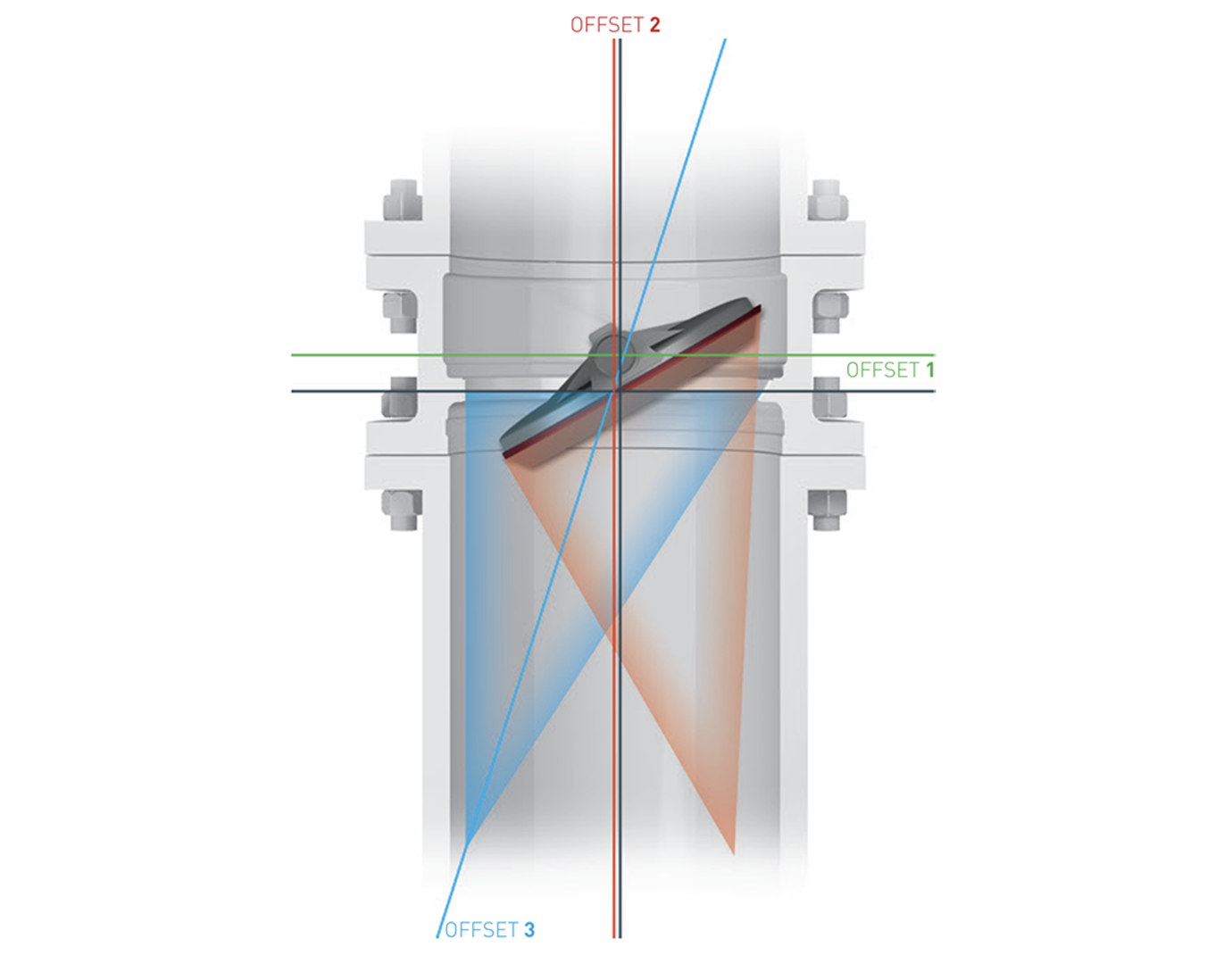

First Offset: Stem Position Relative to the Bore Centerline

In a conventional butterfly valve, the stem runs directly through the center of the disc, along the bore centerline. This arrangement means that the disc must rub against the seat as it rotates, creating friction and wear with every open and close cycle. Over time, that wear degrades sealing performance and increases the torque required to operate the valve.

The first offset relocates the stem behind the sealing plane of the disc. This single change eliminates the rubbing contact that occurs in concentric designs, reducing wear and the actuator torque required to operate the valve.


Second Offset: Stem Position Relative to the Pipe Centerline

The second offset moves the stem laterally, off the centerline of the pipe bore. Combined with the first offset, this positioning creates a cam-like action as the valve opens and closes. The disc lifts cleanly away from the seat as it begins to open, rather than dragging across it. This cam action is what makes the triple offset design a true quarter-turn valve that achieves full open and full close with minimal contact between the disc and seat surfaces.

The result is dramatically reduced wear compared to conventional butterfly valve designs, which directly translates to longer service intervals and a more consistent sealing performance throughout the valve's service life.


Third Offset: Cone Geometry of the Seating Surface

The third offset is the most technically distinctive feature of the triple offset butterfly valve design, and it is the one most directly responsible for zero-leakage performance. In a triple offset valve, the seating surface is machined as a cone that is offset from both the shaft centerline and the pipe centerline.

This conical geometry means that the disc contacts the seat only at the very end of its travel, in the last few degrees before the fully closed position. There is no progressive rubbing during the closing stroke. The disc approaches the seat along a conical path and makes full, even contact across the entire sealing surface simultaneously at the moment of closure.

That single-point contact means the sealing force distributes evenly around the entire seat, with no gaps, no bypass paths, and no localized stress concentrations that could compromise sealing performance. The result is bubble-tight, zero-leakage shutoff that meets ANSI/FCI 70-2 Class VI leakage standards, the most stringent classification available.

The geometric advantages of the triple offset design are complemented by the sealing materials that are paired with that geometry. The most capable triple offset butterfly valves use laminated metal seats rather than elastomeric or soft-seat materials. Metal-to-metal sealing surfaces handle the full range of temperatures and pressures that elastomeric seals cannot, making triple offset butterfly valves suitable for applications from cryogenic to extreme high-temperature service.

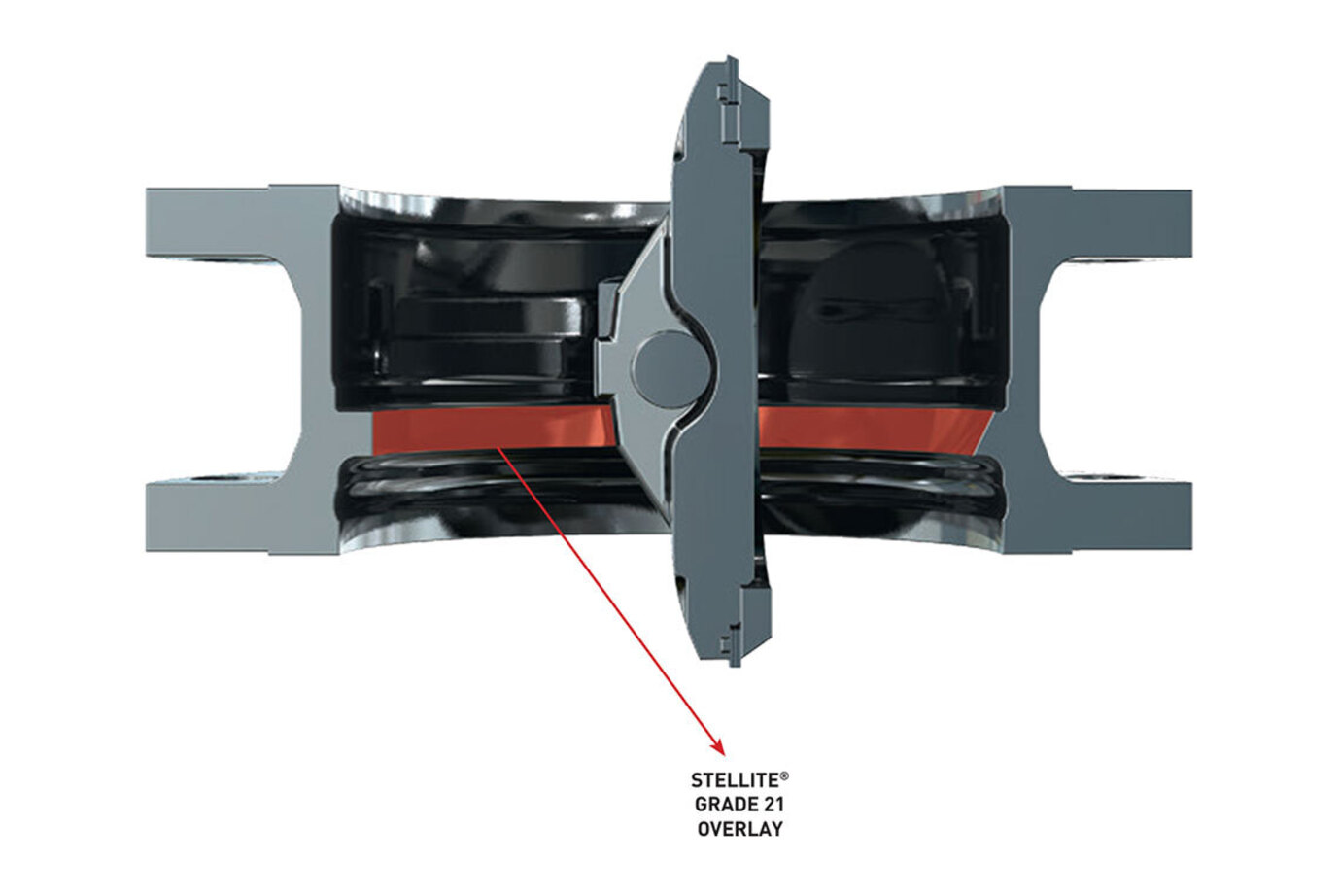

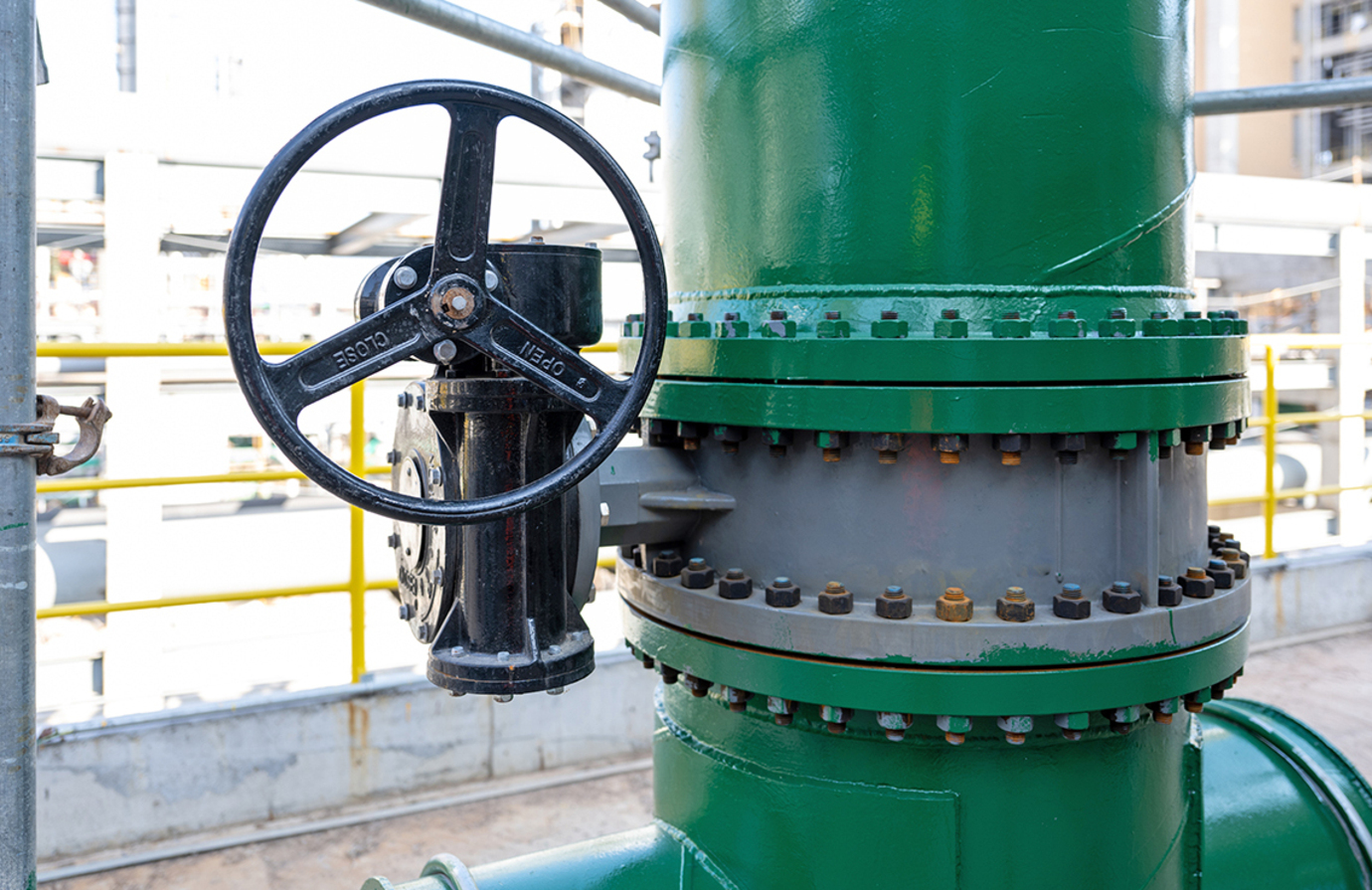

The Vanessa Triple Offset Valve, available through Proconex, uses a fire-safe, metal-to-metal seating arrangement that maintains zero-leakage performance even after fire exposure. In applications where fire safety is a mandated, that capability is a fundamental requirement that triple offset butterfly valves uniquely satisfy among quarter-turn valve types.

Graphite-laminated seat designs provide additional flexibility, offering a combination of metal durability and improved conformability that accommodates minor surface imperfections while maintaining tight shutoff. The result is consistent sealing performance even in applications with particulate-laden process fluids that would quickly destroy softer seating materials.



Understanding the zero-leakage advantage of triple offset butterfly valves is clearest when you compare them directly to the alternatives.


Conventional Concentric Butterfly Valves

Concentric butterfly valves use elastomeric seats and a disc that rubs against the seat continuously during operation. They are inexpensive and work well in low-pressure, low-temperature applications with clean process fluids. In demanding applications, however, they suffer from rapid seat wear, temperature limitations imposed by the elastomeric sealing material, and difficulty achieving true zero leakage in the closed position. For critical isolation service, concentric butterfly valves are the wrong tool.


Double Offset Butterfly Valves

Double offset designs incorporate the first two offsets described above, eliminating most of the rubbing contact of concentric designs and extending seat life significantly. However, without the third offset cone geometry, double offset valves still rely on progressive seat contact during closing, which limits their ability to achieve the consistent, even sealing force distribution that zero leakage requires. Double offset valves perform well in many applications but fall short of the shutoff performance that triple offset designs deliver.


Gate Valves

Gate valves have long been the default choice for critical isolation service. They provide excellent shutoff performance and handle high pressures and temperatures well. However, gate valves are large, heavy, and slow to operate. They require multiple turns to move from fully open to fully closed, making them poorly suited for applications where rapid operation or frequent cycling is required. Their internal flow path also creates a pressure drop that triple offset butterfly valves, with their unobstructed disc-in-pipe design, do not.

Triple offset butterfly valves offer gate-valve-quality shutoff performance in a compact, quarter-turn package that weighs significantly less, installs in less space, and operates far more quickly than a gate valve of equivalent size.

Triple offset butterfly valves are not the right choice for every application, but in the applications where their capabilities align with process requirements, they are often the best choice available.

• Steam Systems: High-temperature, high-pressure steam service demands tight shutoff and excellent thermal performance. Triple offset butterfly valves handle steam service reliably where conventional butterfly valves would fail rapidly.
• Oil and Gas Upstream and Midstream: Wellhead isolation, pipeline block valves, and manifold duty in oil and gas service require valves that perform reliably in remote locations under demanding process conditions. The durability and tight shutoff of triple offset designs make them well-suited to these applications.
• Refining and Petrochemicals: Hydrocarbon service at elevated temperatures and pressures, including applications involving corrosive or abrasive media, is where the metal-to-metal seating of triple offset valves proves its value clearly.
• Power Generation: Turbine bypass, feedwater isolation, and steam conditioning applications all benefit from the combination of tight shutoff and reliable, long-life performance that triple offset butterfly valves provide.
• LNG and Cryogenic Service: At cryogenic temperatures, elastomeric sealing materials become brittle and fail. Metal-seated triple offset butterfly valves maintain their sealing integrity across the full temperature range from cryogenic to high-temperature service.

Getting maximum performance from a TOV valve starts with proper selection. Key parameters that influence valve selection include operating pressure and temperature range, process fluid characteristics including corrosivity, viscosity, and any entrained solids, required shutoff class, actuation requirements including available power source and required speed of operation, and body and trim material compatibility with your process fluid. Proper installation is equally important.

Triple offset butterfly valves require adequate upstream and downstream straight pipe runs to ensure even flow distribution. They must be oriented correctly relative to the direction of process pressure, and actuator sizing must account for the required seating torque at maximum differential pressure conditions.

We sell and service the Vanessa Triple Offset Valve. The Vanessa TOVs are available in a wide range of sizes, pressure classes, and material configurations, and Proconex maintains inventory ready for rapid delivery to support both planned projects and urgent replacement needs.

Our valve application engineers can help you determine whether a triple offset butterfly valve is the right solution for your specific application, select the correct size and configuration, and support your installation and commissioning process to ensure that you get the performance you need from day one.

Beyond supply, Proconex provides full valve lifecycle support including installation assistance, diagnostic testing, repair services, and actuator integration. You are not just buying a valve when you work with Proconex; you are gaining a partner with the expertise to help you keep that valve performing at its best throughout its service life.
